Product Description

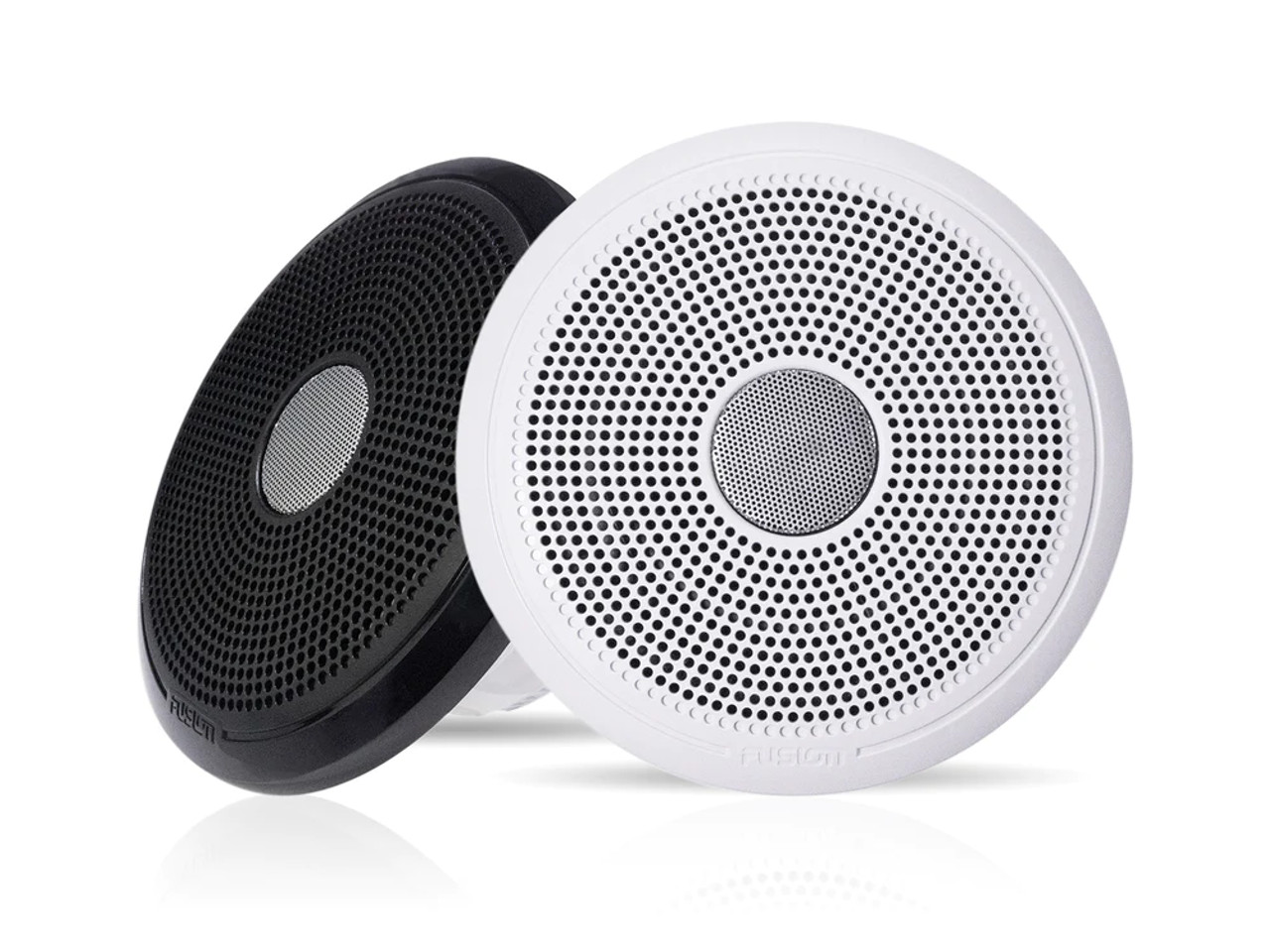

Enjoy high-performance acoustics, enhanced protection from the environment all at a mid-range price point with the XS Series speakers from Fusion.
General |
|
| Physical dimensions (Diameter x Depth) | 6.5" Classic: 6.97" x 3.19" (177 x 81 mm) |
| Water and dust rating | IP65 |
| Configuration | Coaxial |
| Speaker size | XS-F65CWB / XS-FL65SPGW: 6.5" |
| RMS power (Watts) | 6.5" Speaker: 50 W |
| Frequency response | 6.5" Speaker: 80 Hz-18 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 6.5" Speaker: 20-150 W/Ch |
| LED lighting | Yes (RGB; sports-style only) |
| LED supply voltage | 10.8-16 VDC (sports-style only) |
| LED load current @ 14.4 VDC | 150 mA (sports-style only) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 6.5": 1.18" |
| Operating temperature range | 6.5": Polypropylene cone with cloth surround |
| Tweeter type | Aluminum dome |
| Compass-safe distance | 6.5": 122" (310 cm) |
| Warranty | 3 years |
Mounting dimensions |
|
| Mounting diameter clearance | 6.5": 5.31" (135 mm) |
| Mounting depth clearance | 6.5": 2.64" (67 mm) |
Optimum enclosure recommendations |
|
| Sealed enclosure volume1 | 6.5": 0.28 cubic ft (8 L) |
1 Fully filled with absorption material
